Waterproof system Bafang Mid Drive Motor 48v1000w Electric bike kit

FOB Reference Price:Get Latest Price
$535.00 - $545.00 / Units | 20 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Voltage:
48V, 48v
Design:
Brushless
Wattage:
> 400w
Product name:
Bafang Mid Drive Motor 48v1000w Electric bike kit
Brand Name:
Bafang
Rated Power:
1000w
Type:
Mid drive
Speed sensor:
With
BB size:
68mm/100mm/120mm
Speed:
45-50km/H
Weight:
8.5kg
Color:
Black
Supply Ability
Supply Ability:
2000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Material : carton with foam, packaged with tapes
Port
shanghai or ningbo
Lead Time :
shipped in 7 working days

Waterproof system Bafang Mid Drive Motor 48v1000w  Electric bike kit

Product Overviews



 1. With an integrated speed sensor, this mid-drive motor 1000w , which is compatible with a 68mm-120mm bottom bracket, has a rated power of 1000W.

2. A reduction ratio of 1: 21.9 and a maximum torque of 160 N.m, will provide the rider with great explosive force when starting the system.

3. Highly strong and efficient, this motor greatly enhances riding joy and is suitable for mountain bikes and sand bikes which are the favorites of riders who love challenges as well as transport bikes.



Product Description
Specifications for Bafang Mid Drive Motor 48v1000w  Electric bike kit:
Model Number
BAFANG BBSHD 1000W
Voltage
48V
Bottom bracket
68/100/120(mm)
Place of Origin
Jiangsu,China
Display
Color display
Certification
CE
Power
1000w
Warranty
2 years
Brake lever
Two
Max Torque
160 N.M.
Waterproof level
IP 65
MOQ
20 Piece
Operating Temperature
-20 - 45 °C
Weight for Motor
5.6kgs
Wheel size
Adjustable
Port
Shanghai/Ningbo
Packing list for BBSHD 48v1000w Bafang Mid Drive Motor Kit Electric bike kit:

1 x BaFang Mid Drive Motor

 1 x Controller inside of Motor

 1 x Color display

 1 x Thumb Throttle

 2 x Brake Levers(A pair)

 1 x Chain Wheel

 1 x Right and Left Crank

 1 x Speed Sensor and Magnet

 1 x Nuts

Details for Bafang Mid Drive Motor 48v1000w  Electric bike kit:

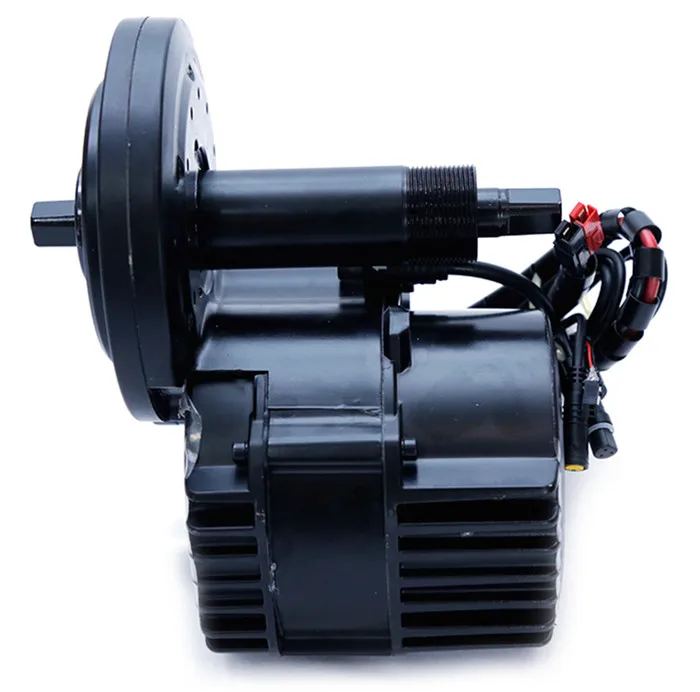

*Mid drive motor: 48v1000w

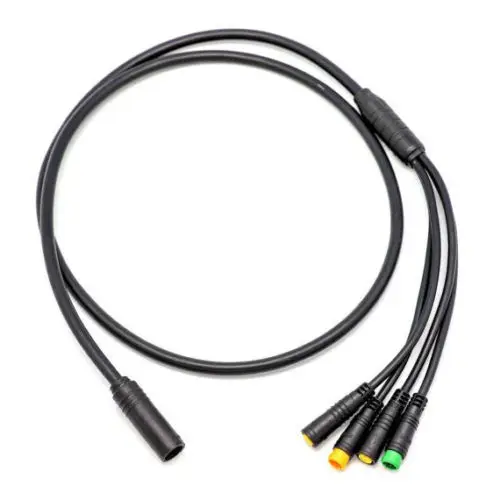

*Waterproof cables:

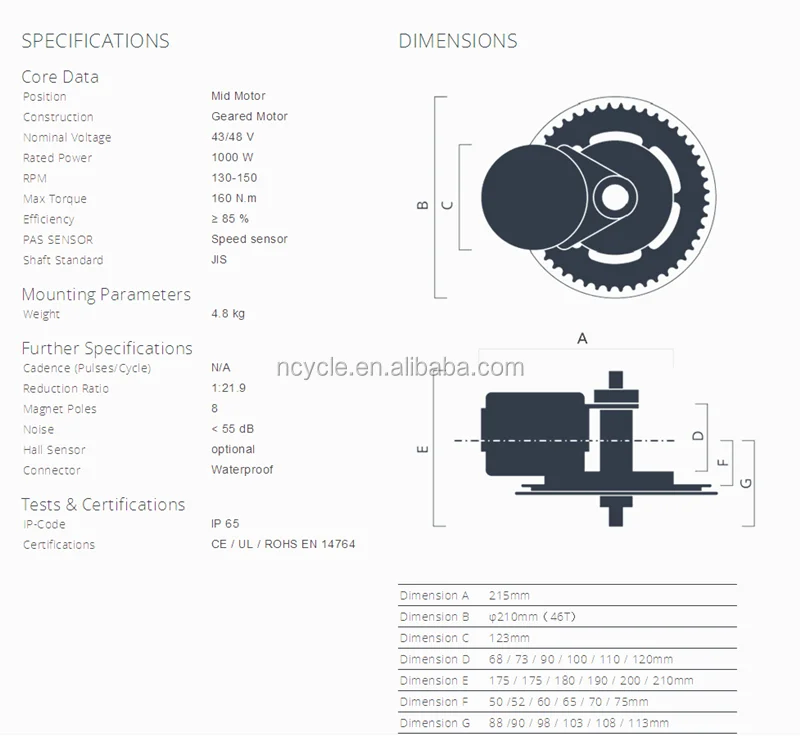

Motor Drawing for BBSHD 48v1000w Bafang Mid Drive Motor Kit Electric bike kit:

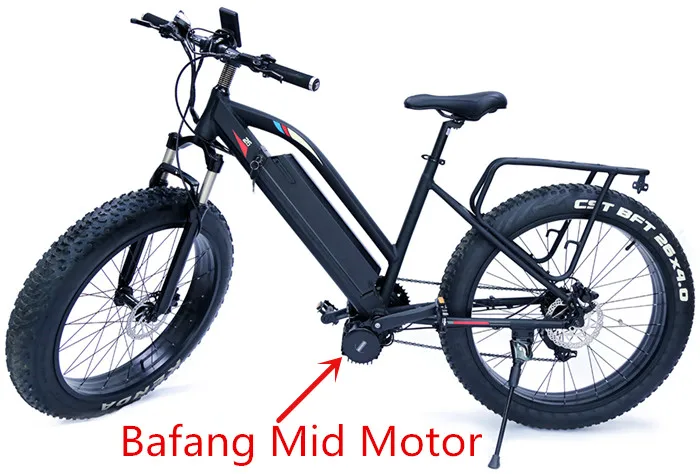

Application for BBSHD 48v1000w Bafang Mid Drive Motor Kit Electric bike kit:


Packaging & Shipping



1.Packing:

Standard export carton packing.

2.Shipping:

For samples,we deliver goods to customer by UPS,FEDEX,DHL,TNT or EMS.

For mass production order,we deliver goods to customer by air or by sea.



Our Services

1. Low MOQ: It can meet your e-bike parts wholesale and retailing business very well.

2. Good Service : We treat clients as friend. Quick response in 12-24 hours. Two years warranty for motor, one half year warranty for battery.
3. Good Quality :We have strict quality control system .Good reputation in the market. Each product is tested 100% good before shipping.

4. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

5. New models developed per year by our R&D team.

6. Professional solution can be provided for electric bike installation.

If you have any questions, don't hesitate to contact us.
