Bafang bbshd 48v 1000w mid drive motor for electric bike

FOB Reference Price:Get Latest Price
$539.00 - $559.00 / Piece | 5 Piece/Pieces Mid Driver Motor electric bike conversion kit (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
bafang
Model Number:
BB481000
Part:
Wheel
Motor:
Bafang bbshd 48v 1000w mid drive motor for electric bike
BB size:
68mm/100mm/120mm
speed:
45-55km/H
Max torque:
160N.M
Sensor:
Speed sensor/Hall sensor
Construction:
Geared motor
cable:
Water-proof cable 1T4
Weight:
6.5kg
controller:
30A
RPM:
115-160
Supply Ability
Supply Ability:
2000 Unit/Units per Month Bafang bbshd 48v 1000w mid drive motor for electric bike
Packaging & Delivery
Packaging Details
Bafang bbshd 48v 1000w mid drive motor for electric bike
Pack size :
40x35x25cm
Port
shanghai or ningbo
Lead Time :
7-15 working days after payment



Bafang bbshd 48v 1000w  mid drive motor for electric bike

Product Description

  With an integrated speed sensor, this mid-drive motor 48v 1000W BBSHD, which is compatible with a 68-120mm bottom bracket, has a rated power of 1000W, a reduction ratio of 1: 21.9 and a maximum torque of 160 N.m, will provide the rider with great explosive force when starting the system. Highly strong and efficient, this motor greatly enhances riding joy and is suitable for mountain bikes and sand bikes which are the favorites of riders who love challenges as well as transport bikes. This motor is black.






1. BBSHD Bafang 48v 1000w  mid drive motor for electric bike Package including :

Bafang BBS03/BBSHD motor kit :
MOTOR:1000W
BB:68mm,100mm,120mm for choosing
1×Mid motor
1×C961/color display
1×Thumb throttle
1×Speed sensor
1×Chain wheel
2×Crank
2×Brake levers

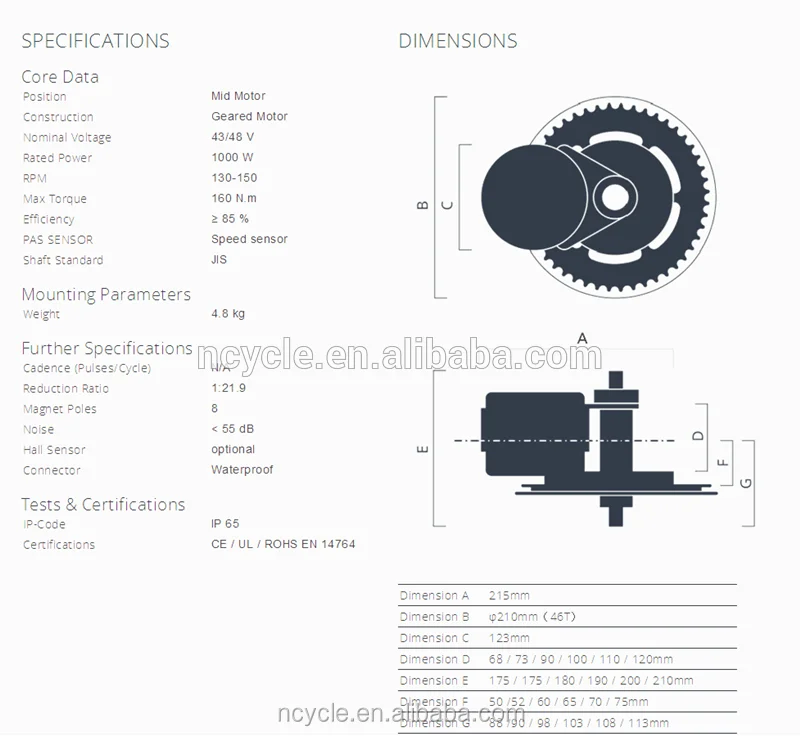

2.Detailed parameter of High efficiency 48v 1000w bafang e-bike kit is as below:

1.Model:BBSHD

2.Nominal voltage:48v

3.Rated power:1000w

4.Construction:Geared motor

5.RPM:115-160

6.Max torque:160N.M

7.Efficiency:85%

8.Sensor:Speed sensor/Hall sensor

9.IP-Code:IP 65

10:Bottom Bracket:68mm/100mm/120mm

3.The advantage of Bafang bbshd 48v 1000w  mid drive motor for electric bike :

1.This kits can be installed on standard normal bike frame easily,no need to change the frame.
2.High starting torque, good performance on climbing.
3.Double clutch is used on drive unit,more safety.
4.High efficiency, low consumption,long travel distance.



Detail show

 BB:68mm,100mm,120mm for choosing for bafang motor



 bafang motor

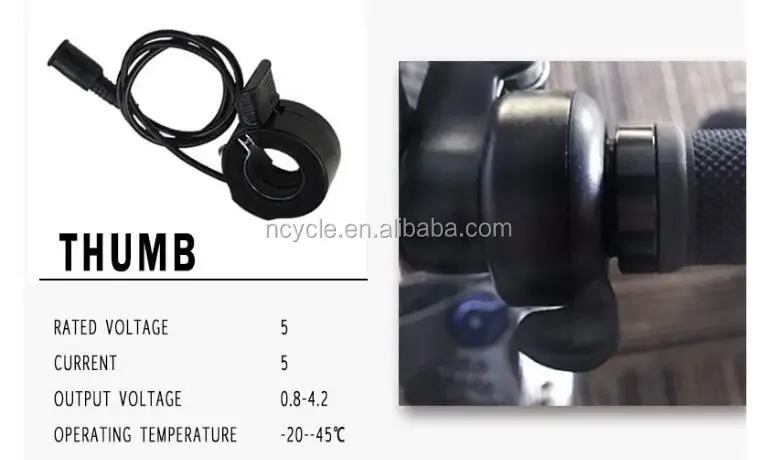

Thumb throttle for the BBS03 BAFANG 8 FUN 48v 1000w ebike kit

thumb throttle

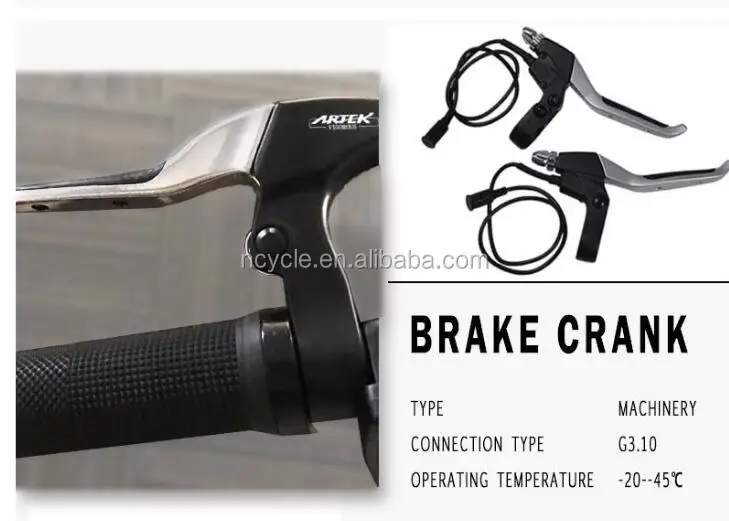

Electric brake lever for Bafang bbshd 48v 1000w  mid drive motor for electric bike Package including

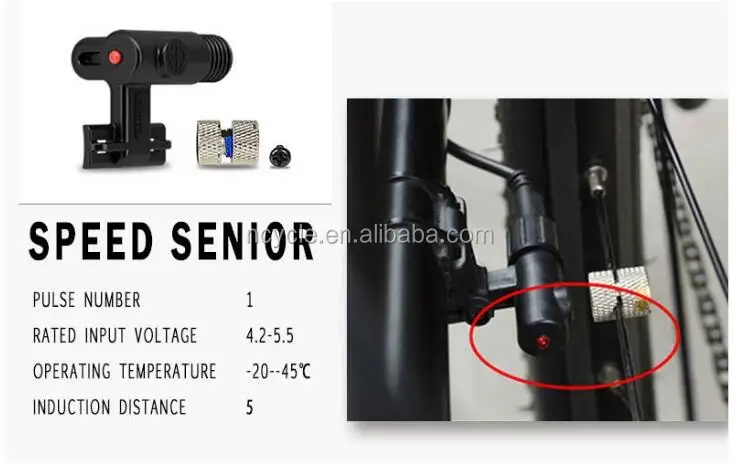

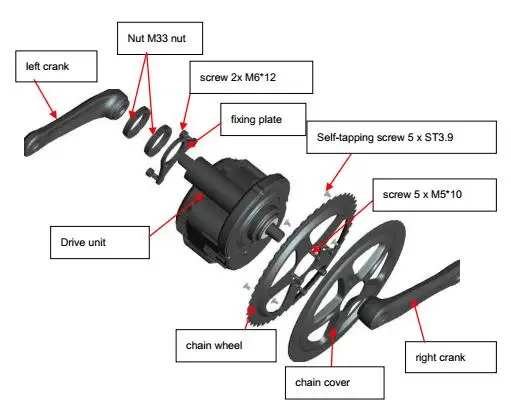

brake leverspeed sensorbafan drawing

C965 display show

1

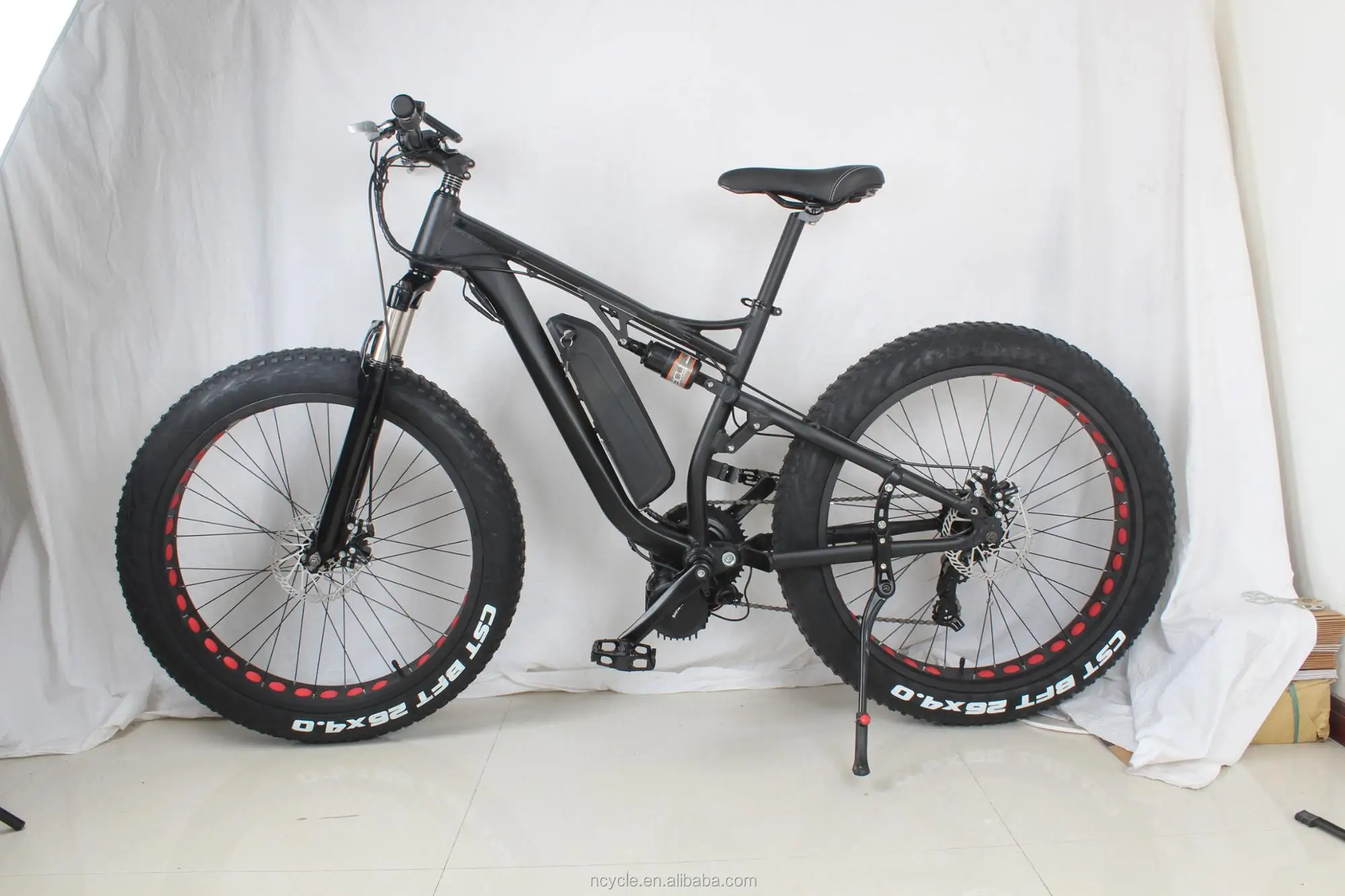

N026 bafang  48v 1000w mid drive motor fat tire MTB  electric bike with suspension

 IMG_5701

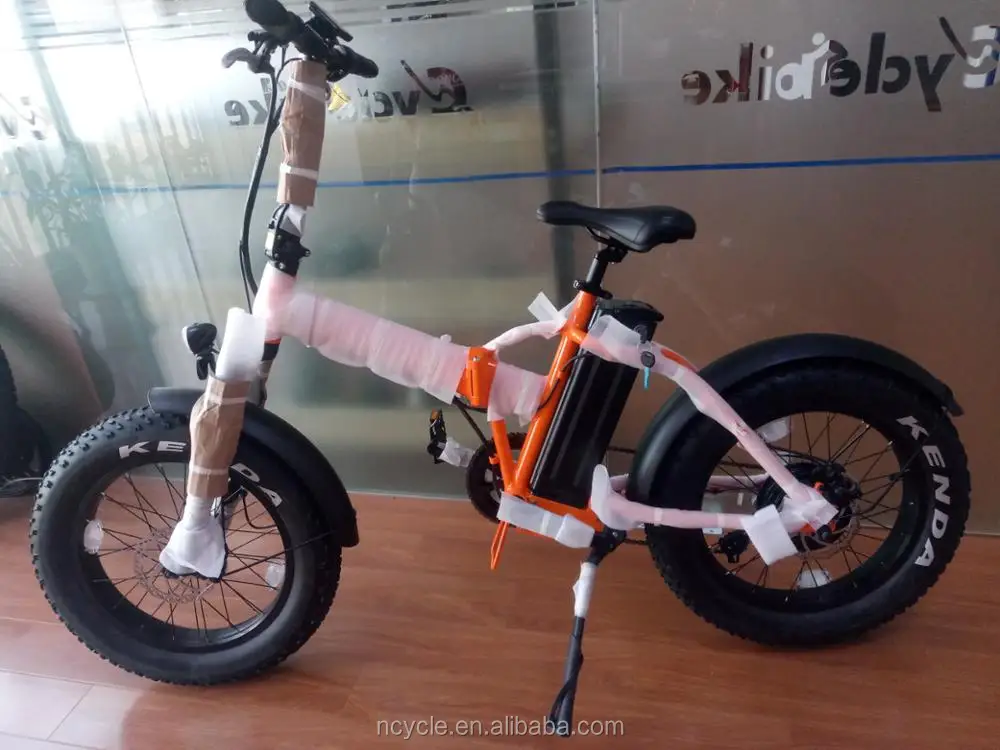

NC002 bafang hub motor 20inch folding electric bike
