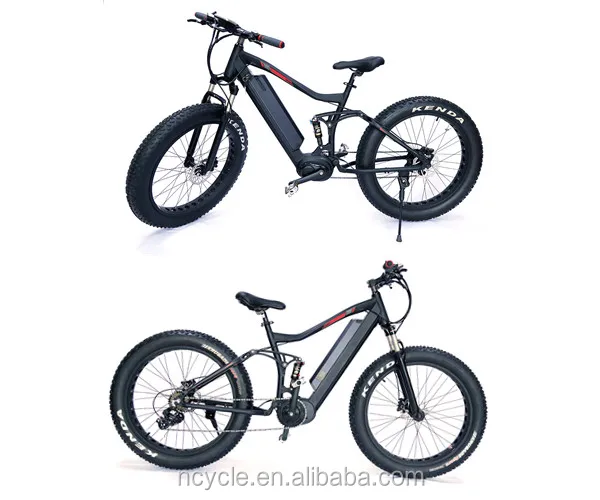

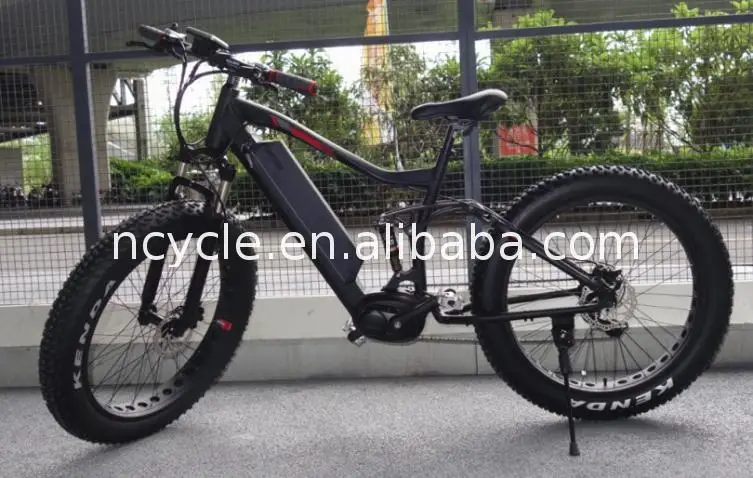

36v350w TSDZ mid drive motor Electric Fat tire electric Bicycle

FOB Reference Price:Get Latest Price
$890.00 - $1,200.00 / Units | 5 Unit/Units 36v350w TSDZ mid drive motor 26" Electric Fat tire electric Bicy (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Wattage:
351 - 500w
Voltage:
36V
Power Supply:
Lithium Battery
Motor:
Brushless
Certification:
CE
Frame Material:
Aluminum Alloy
Foldable:
No
Max Speed:
30-50km/h
Range per Power:
31 - 60 km
Place of Origin:
Jiangsu, China
Brand Name:
OEM
Model Number:
NC024A
motor:
36v350w TSDZ mid drive motor Electric Fat tire electric Bicycle
battery:
36V10AH lithium battery
speed:
30KM/H
range:
50-60km with pure electric and PAS
frame:
26AL-ALLOY frame AL6061
tire:
26x4.0 kenda brand fat tire
Disc brake:
update :SHIMANO Hydraulic M355
Rear shock:
DNM rear suspension Air
Front fork:
Suspension Front fork MOZO
controller:
36V17A smart controller, sinewave system
Wheel Size:
26“
Supply Ability
Supply Ability:
5000 Unit/Units per Month 36v350w TSDZ mid drive motor Electric Fat tire electric Bicycle
Packaging & Delivery
Packaging Details
Packing size 1550mm*290mm*800mm
Net weight : 25kgs ; Gross weight : 27kgs
Qty of 20HQ 105units
Port
shanghai or ningbo
Lead Time :
7-15working days after payment

36v350w TSDZ mid drive motor Electric Fat tire electric Bicycle

Product Description

 Feature :

1. mid drive  motor

2.350w electric fat  bike

3.speed :50-60 km/h

4.full suspension or front fork  suspension

Motor36v 350w MID drive motor
Battery36V10AH lithium battery
ChargerAC100V~240V 2A MAX47~63Hz charging time 4-5H
Speed30KM/H
Range50-60km

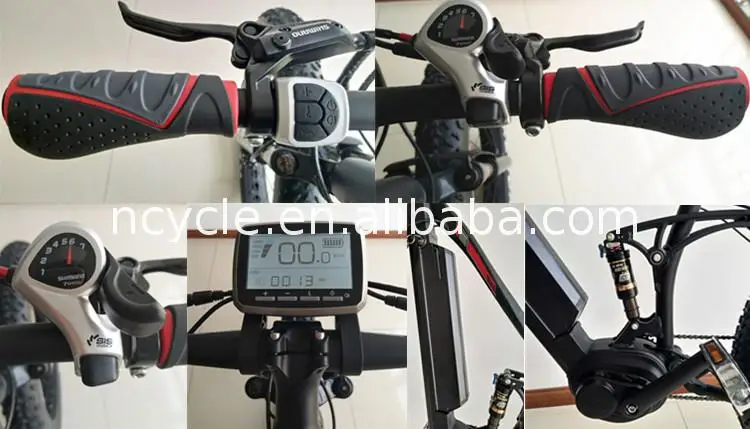

LCDLCD, Speed , distance, 5 levers pas, time , battery indicator and so on.
Controller36V17A smart controller, sinewave system
Frame26AL-ALLOY frame AL6061
Tyres26x4.0 kenda brand fat tire
Front forkSuspension Front fork MOZO
Rear shockDNM rear suspension Air

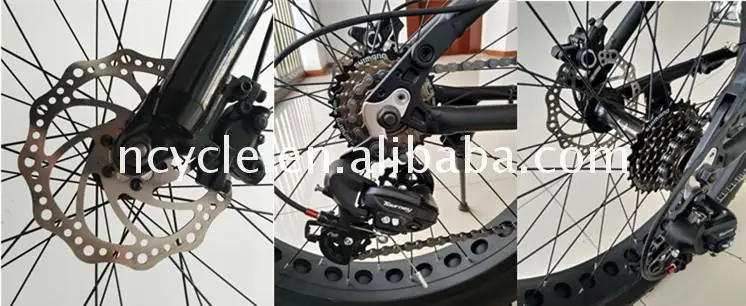

Front brakeDisc brake  ( update : SHIMANO Hydraulic M355 )
Rear brakeDisc brake  ( update : SHIMANO Hydraulic M355 )
Rear Derailleur Lever7speeds SHIMANO
SeatThickened SPORT seat
Handle barAL-ALLOY overstriking 31.8 AL6061 ZOOM
StemAL-ALLOY overstriking 31.8 AL6061 ZOOM
PedalsBigger size AL-ALLOY pedals
Seat postAL-ALLOY 27.2 AL6061 ZOOM
Standard configWithout headlight, with half grip throttle
FenderWith plastic fenders
Packing size1550mm*290mm*800mm
WeightNet weight : 25kgs ;  Gross weight : 27kgs
Qty of 20HQ105units
ColorsRed,White,Matte black,Blue,Grey and others







exhibition

2017 shanghai internatiaonal bicycle exhibition

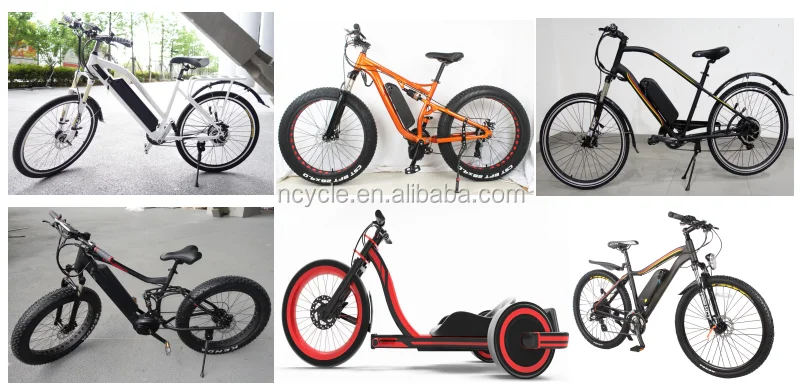

Newest design ebike for your choose

mainly electric bike conversion kit

mainly lithium battery for electric bike



Packaging & Shipping









Certifications





FAQ

Q1. Can I place a sample order for electric bike?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 7 days, mass production time needs 20-30 days for order quantity.

Q3. Do you have any MOQ for sample order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: Airline and sea shipping optional. It usually takes 3-7 days/ 20-35 days to arrive

Q5. How to proceed an order?

Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places formal order.
Fourthly We arrange the production and all the transport,

Q6. Is it OK to print my logo on electric bike?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7. Do you offer guarantee for the products?

A: Yes, we offer 2 year warranty to our products.

Q8. How can I get best performance from the batteries?

Before you riding, it is best if you fully charge the batteries. It is perhaps also useful to know that your battery pack can attain the maximum capacity – and therefore the maximum range – after being fully charged and then drained five to ten times.

Q9. How often do I have to charge the batteries?

The batteries can be recharged even if they aren’t completely empty, so you can recharge your batteries whenever it is convenient for you.

Q10. How long does it take to fully charge the batteries?

That depends on how full they are. Completely empty batteries will take 4 to 6 hours to charge with a standard charger.

Q11. I don’t ride in winter, what should I do with the batteries?

If you prevent the batteries from remaining empty for longer periods of time, they will last much longer. So be sure to charge your batteries at least once per month.

Q12. How can I get more kilometers from my bike ?



Your bike most efficient when you ride slowly,turn off the lights, keep your tyre pressure at 2.5 bar for comfort or 3.0 bar for extra range.
