3000w gearless brushless hub motor for electric bike wheel kit

FOB Reference Price:Get Latest Price
$115.00 - $139.00 / Piece | 10 Piece/Pieces 3000w gearless brushless hub motor for electric bike wheel kit (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Voltage:
48V
Design:
Brushless
Wattage:
> 400w
Product name:
3000w gearless brushless hub motor for electric bike wheel kit
Power:
3000w
design:
gearless brushless
Color:
black
warranty:
24months
lithium battery:
48v26ah
wheel:
MTX sungringls rim
weight:
13kgs
drop out:
150mm
winding:
21*3
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month 3000w gearless brushless hub motor for electric bike wheel kit
Packaging & Delivery
Packaging Details
3000w gearless brushless hub motor for electric bike wheel kit
Material : carton with foam
package size : two motors in one box, the size is 48cm x 28cm x 28cm
gross weight : 18kgs.
Port
shanghai
Lead Time :
7 working day for sample

3000w gearless brushless hub motor  for  electric bike wheel kit



3000w 4.jpg




Motor power

3000w

Axle

10mm* 16mm

Type

Rear motor only

Voltage

72v

Magnet Height

45mm

Design

Brushless gearless

Windings

21*3

Waterproof grade

IP54

RPM

860

Number of pole pairs

23

Peak phase current

190A

Cable size

6mm2

Max torque

110N.M

Max Efficiency

85%

Open size

150mm for rear motor only

Wheel size

16-28inch

Hall sensor

Yes

Hall sensor angle

120 degrees

Integrate speed sensor

Optional

Brake

Disc brake

Surface color

Dark black

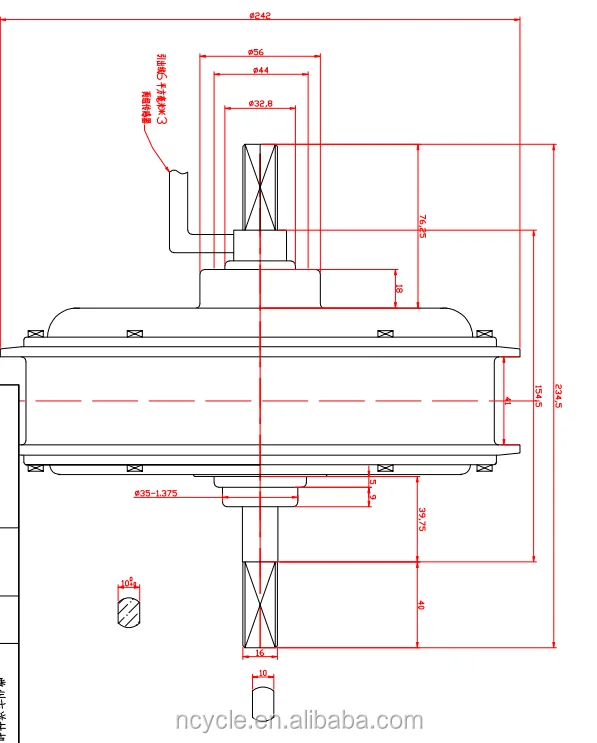

Drawing for 3000w electric bike kit

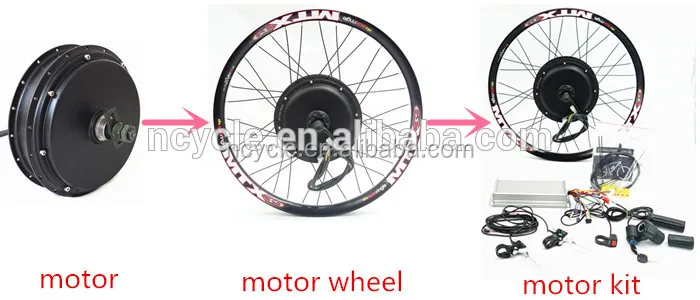

3000w hub motor wheel


Packing for 3000w hub motor
