72v 5000W brushless gearless Electric Bicycle wheel hub motor

FOB Reference Price:Get Latest Price
$209.00 - $229.00 / Piece | 10 Piece/Pieces High torque 48v-96v 5000W Electric Bike Scooter hub motor (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Voltage:
48V
Design:
Brushless
Wattage:
> 400w
Product name:
72v 5000W brushless gearless Electric Bicycle wheel hub motor
Power:
5000w
design:
gearless brushless
Color:
black
warranty:
24months
torque:
190N.m
wheel:
MTX sungringls rim
weight:
13kgs
drop out:
150mm
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month 72v 5000W brushless gearless Electric Bicycle wheel hub motor
Packaging & Delivery
Packaging Details
72v 5000W brushless gearless Electric Bicycle wheel hub motor
Material : carton with foam
package size : two motors in one box, the size is 48cm x 28cm x 28cm
gross weight : 18kgs.
Port
shanghai
Lead Time :
7 working day for sample

High torque 48v-96v 5000W Electric Bike Scooter  hub motor

5000W kit 5_32e.jpg

 Detail specification for High torque 48v-96v 5000W Electric Bike Scooter  hub motor

ModelNC5000
Motor power5000w
Axle10mm* 16mm
motor diameter244mm
Voltage48v-96v
Magnet Height50mm
statoraluminum alloy
windings700rpm @72v, 4Tx20
waterproof gradeIP54
KV3T motor is 12.5KV , 4T motor is 9KV.
numbers of pole pairs16
peak phase current300amp
Max torque> 190N.m
Max Efficiency89.80%
drop out149mm
Numbers of Motor phase3 pcs
Hall sensor2 sets, one is for spare
hall sensor phasing120 degrees
cross section of phase wire10mm2
temperature sensorKTY82/122
colordark black
N.W12.75kgs

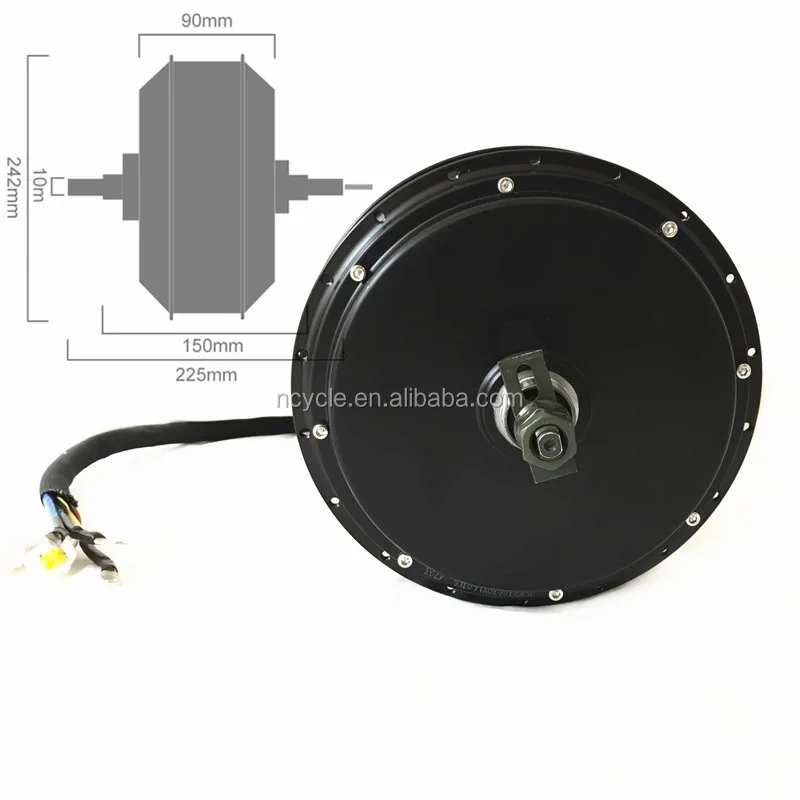

Drawing for High torque 48v-96v 5000W Electric Bike Scooter  hub motor




 5000W motor 4.jpg

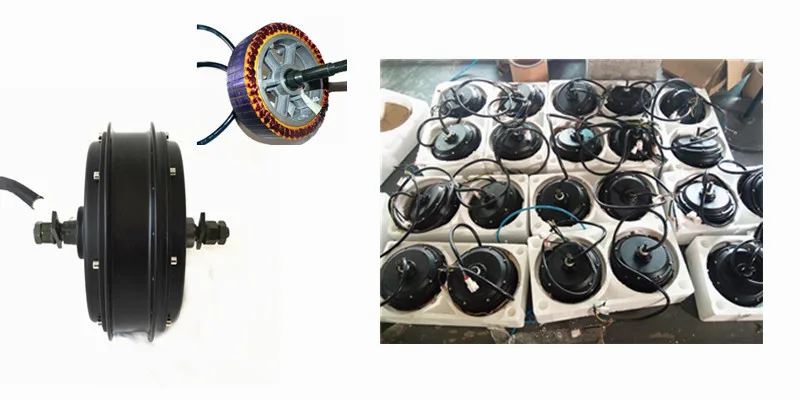

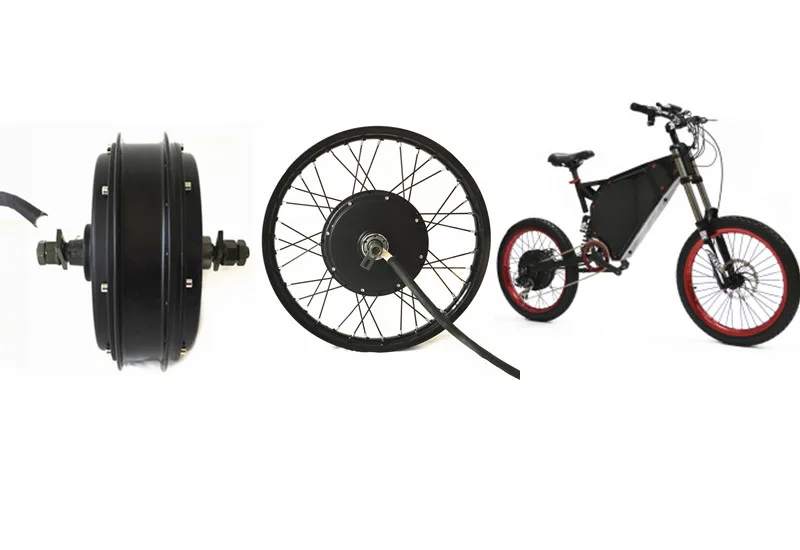

48v-96v 5000W Brushless  Electric Bike hub motor for ebike kit wheel

5000W kit 1.jpg

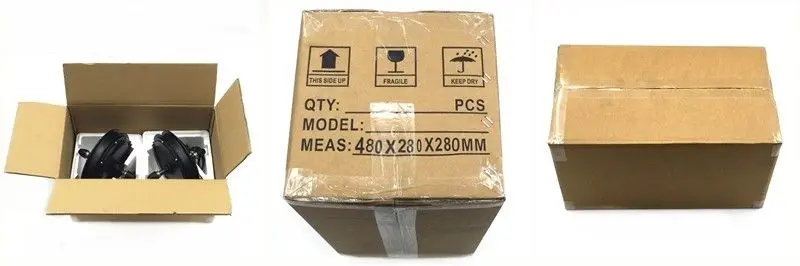

Packing for High torque 48v-96v 5000W Electric Bike Scooter  hub motor
