Chinese 48v 750w fat tire electric mountain bike with lithium battery

FOB Reference Price:Get Latest Price
$559.00 - $669.00 / Pieces | 1 Piece/Pieces 48v 750w fat tire electric mountain bike (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Voltage:
48V
Design:
Brushless
Wattage:
> 400w
Product name:
48v 750w fat tire electric mountain bike
Power supply:
Lithium battery
Model number:
NC-018c
Wheel size:
26"*4.0
Motor:
Brushless,geared
Frame Material:
Aluminum Alloy
Foldable:
No
Display:
LCD display
Max Speed:
30-40km/h
Colour of ebike:
orange ,Black, blue or others
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month 48v 750w fat tire electric mountain bike
Packaging & Delivery
Packaging Details
48v 750w fat tire electric bike with lithium battery
1.white sheet sponge wrap unitized frame.
2.Bubble sheet wrap the unitized frame again.
3.7layer corrugated carton.
Port
Shanghai or Ningbo sea port for leectric bike 48v 750w fat bike electric fat bike with bicycle tire 26x4.0
Lead Time :
15-20 working days after payment
Product Description

Hot sale : This fat tire electric bike can be make 350w, 500w , 750w, 1000w, 1500w hub motor . we have geared and gearless motor for your choose .

this electric bike are all water proof cable . we can customzied the brand for your company .

Motor :48v 750 rear brushless geared motor
Battery :48V12.8AH lithium battery
Charger :AC100V~240V 2A MAX47~63Hz charging time 5~7H
Speed :35Km/h
Range :35km-60km with pure electric and PAS
LCD: KT brand LCD 5 display. show speed , battery indicator , range , 5 levels pedal assistant etc
Controller :48V22A smart controller,
Frame :26'AL-ALLOY frame AL6061
Tyres :26x4.0 kenda brand

Rear brake Disc brake :TEKTRO with bell
Rear Derailleur Lever :7speeds
Seat DDK thickened: SPORT seat
Handle bar: AL-ALLOY over striking 31.8 AL6061 ZOOM
Stem :AL-ALLOY over striking 31.8 AL6061 ZOOM
Pedals Bigger size :AL-ALLOY pedals
Seat post :AL-ALLOY 27.2 AL6061 ZOOM
Packing size :1650mm*300mm*800mm
Net weight : 29kgs ; Gross weight : 32kgs
Qty of 20HQ :95 units
Colors : Red、White、Matte black、Blue、Grey and others

Detailed Images

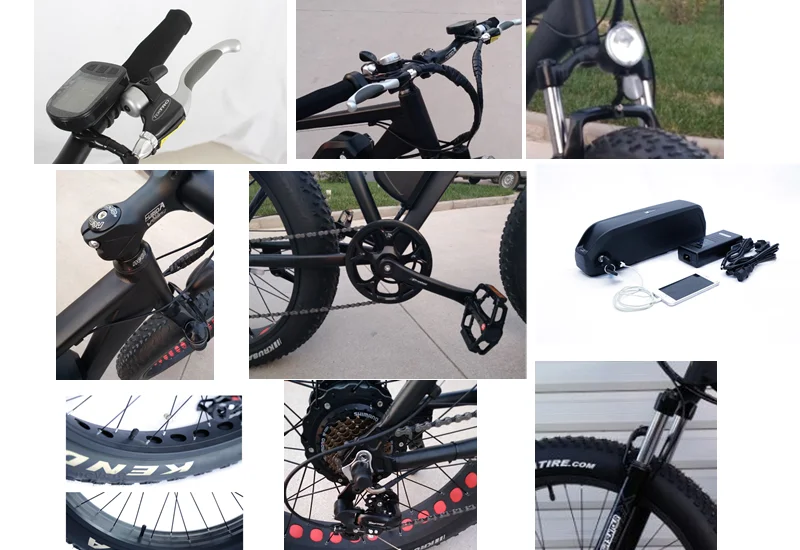

Detail show for the  electric fat tire bike

Optional parts for your fat tire electric  bike /bicycle

1. 12 magnets PAS:+2USD
2. LCD3  panel: +25USD
3. independent headlight: +15USD
4. leather grips : +3USD
5. Plastic mudguard /fender : +25USD
6. Recharge battery :+15USD

Packing & Delivery

48v 750w geared burshless motor

position: rear motor
construction: geared drive
wheel diameter:26inch
rated power : 350w, 500w , 750w.
efficiency(%):≥80
color: black
dropout:175mm
operating temperatures:-20 --45℃

Aluminum alloy  rear wheel

26inch for fat electric bike , there have two style for your choose , one is without the hole , the other one can be put the color taps.
26*4.0 RIM .



48v12.8ah lithium battery

This battery use Sam sung cell and L G cell , the warranty is 18months . if you wanted more power capacity , we can provide 48v 16ah for your choose , this controller can be built in the battery . it will more becautiful for your bike .

exhibition

Packing


Packing size :1650mm*300mm*800mm

Net weight : 29kgs ;
Gross weight : 32kgs
