China 48v 500w geared motor 20inch folding fat electric bicycle

FOB Reference Price:Get Latest Price
$545.00 - $650.00 / Units | 5 Unit/Units 20inch 48v 500w geared hub motor folding fat electric bicycle (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Wattage:
351 - 500w
Voltage:
36V
Power Supply:
Lithium Battery
Motor:
Brushless
Certification:
CE
Frame Material:
Aluminum Alloy
Foldable:
Yes
Max Speed:
30-50km/h
Range per Power:
31 - 60 km
Place of Origin:
Jiangsu, China
Brand Name:
Ncyclebike
Model Number:
NC002
produce:
48v 500w geared motor 20inch folding fat electric bicycle
Controller:
48V 22Amp smart controller
Warranty:
Two Years
Power:
350W/500W/750w
Throttle type:
Thumb throttle
Wheel size:
20inch
PAS:
1:1 pedal assistant
Motor display:
LED/LCD display
Battery:
lithium battery
Color:
red , orange , black , green
Wheel Size:
20“
Supply Ability
Supply Ability:
2000 Unit/Units per Month China 48v 500w geared motor 20inch folding fat electric bicycle
Packaging & Delivery
Packaging Details
China 48v 500w geared motor 20inch folding fat electric bicycle
1.white sheet sponge wrap unitized frame.
2.Bubble sheet wrap the unitized frame again.
3.layer corrugated carton.
The packing size : 115*51*72cm
Port
shanghai or ningbo
Lead Time :
25 working days after payment for folding electric bike bicycle
Product Description

This ebike can be make 350w , 500w , 750w geared fat folding electric bike . it use sam sung cell lithium battery . the connector is all water proof cable . the tire is 20*4.0 inch rim .we can customrized depend on your demand .

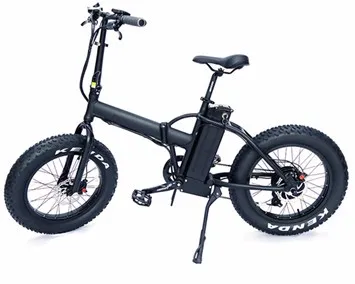

Detailed Images

Motor :   20''48V500W rear brushless geared motor
Battery :  48V10AH lithium battery SAM SUNG brand
Charger : AC100V~240V 2A MAX47~63Hz charging time 5~7H
Speed :  30 Km/h
Range:   30~35Km with pure electric 30~50Km with PAS
PAS  :   1:1 6 magnets intelligent pedal assistant system
LCD:    Display, limit the power,speed
Controller : 48V22A Smart controller
Frame : 20' 'foldable AL-ALLOY frame AL6061
Tyres : 20×4.0 slide-proof tyres Kenda Or CST brand
Front brake :   TEKTRO Hydraulic HD-1500
Rear brake:   TEKTRO Hydraulic HD-1500
Derailleur Outer:   7 speed SHIMANO
Chain KMC : 7 speed chain
Chain wheel : 42 teeths double covers AL-ALLOY LESCO
Seat : thickened soft seat
Handle bar : AL-ALLOY AL6061 PROMAX
Stem : Foldable AL-ALLOY AL6061 PROMAX
Pedals :  Bigger size AL-ALLOY pedals
Seat post : AL-ALLOY 27.2 AL6061 ZOOM
Standard:  config Without headlight, with half grip throttle
Qty of 40HQ : 115 units
Colors Red、White、Matte black、Blue、Grey and others

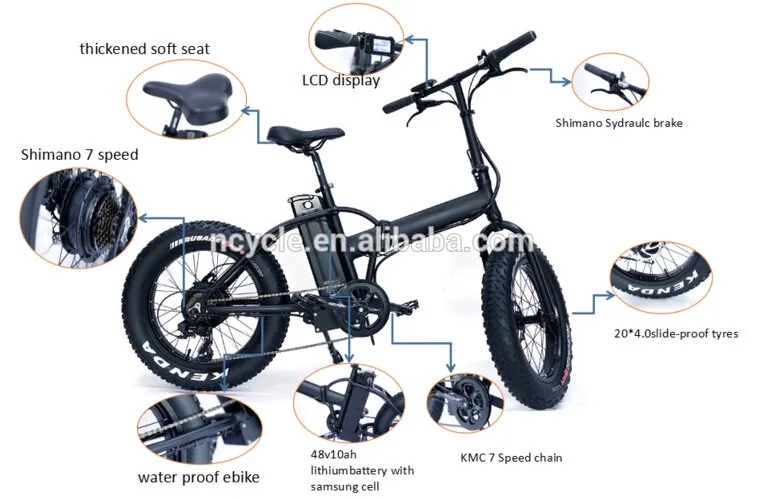

3)More detail pictures of 20inch folding electric bicycle

Optional parts for 20 inch  folding tire  electric  bicycle

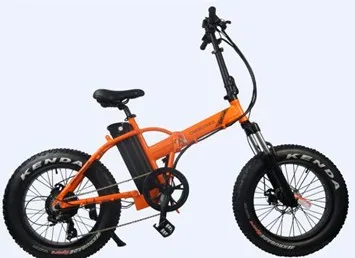

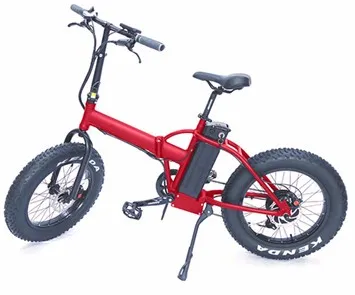

Orange , Green , Red , Black color for 20inch folding electric bicycle
Packing & Delivery

Packing size :

1150*510*720mm
G.W:23.5KGS
N.W:21.5KGS
