48v 500w 1000w electric bike ebike geared hub motor conversion kit at hills area

FOB Reference Price:Get Latest Price
$95.00 - $118.00 / Piece | 2 Piece/Pieces (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 5 6 - 10 >10
Est. Time(days) 10 15 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples:
$120.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Ncyclebike
Model Number:
ENC500
Part:
Wheel
Speed:
30-40km/h
Position:
Front Rear Wheel
Size:
16-29 inch
Efficiency:
80%
Max Torque:
35N.M
Warranty:
2 Years
Controller:
22amp Smart Controller
Color:
Black
Display:
LED Or LCD
Certificate:
EN 15194 CE
Product Certification certification
CE Certified.
Valid from 2019-08-22 until 2024-08-21
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery

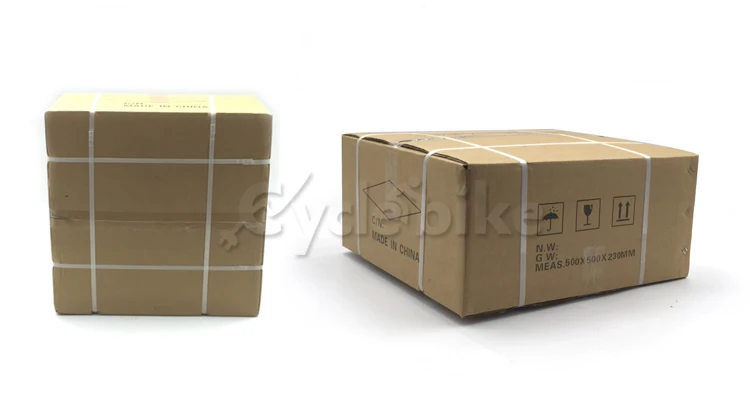

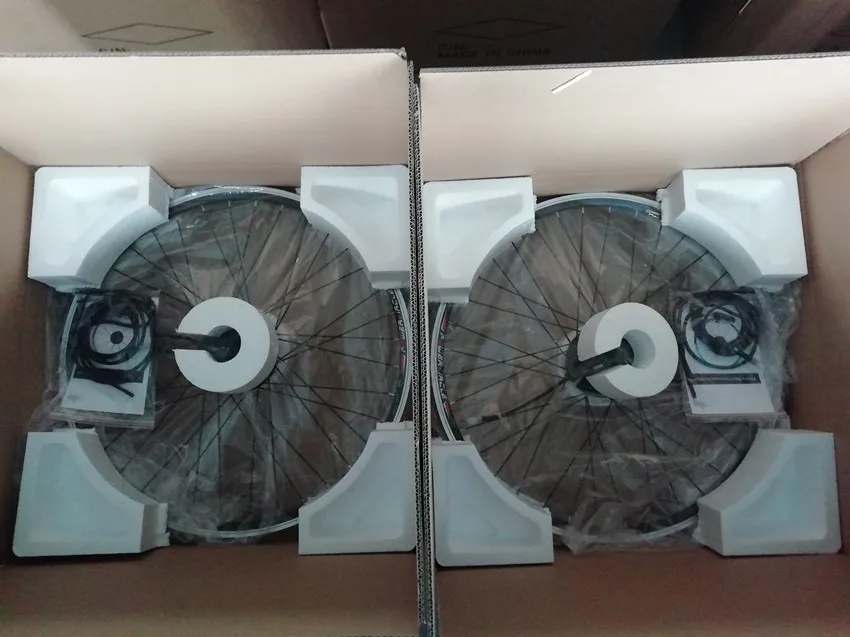

Packaging Details
Every piece packed soft carton with soft foam,protect the product out of damage
rim size:16-20 inch:50cm*50cm*23cm
24 inch:55cm*55cm*23cm
26 inch:60cm*60cm*23cm
27.5,28,29,700c: 65cm*65*23
We also accept customization of outer packaging if quantity more than 100
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 5 6 - 10 >10
Est. Time(days) 10 15 To be negotiated
Product Description
Model
ENCBPM
Certificate
CE for EN15194
motor
36v 500w/48v1000 brushless geared motor design
Wheel size
16"20"24"26"27.5"28"29"700c bicycle rim
controller
36v 22amp/48v22amp smart controller
Throttle type
Thumb throttle/Twist throttle
Electric brake levers
Wu xing brand electric brake lever
pas
1:1 8 magnet intelligent pedal assistant
manual
Book manual,ties
specification
30-40km/h speed,180kgs max loading
package
Carton box with foams packing for express shipping
color
Black
Option parts
tires
Kenda tire and tube

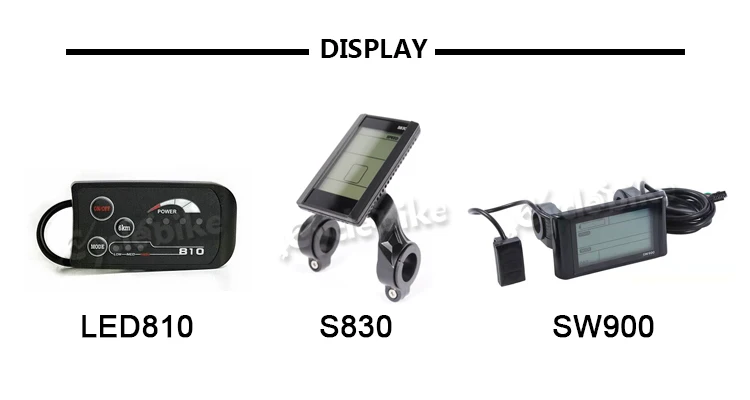

LCD/LED display
Show multifunctions,speed ,range,time,max speed adjust,5 pas system and so no
Head light
Headlighet with horn
free wheel
6 speed or 7 speed for rear motor only

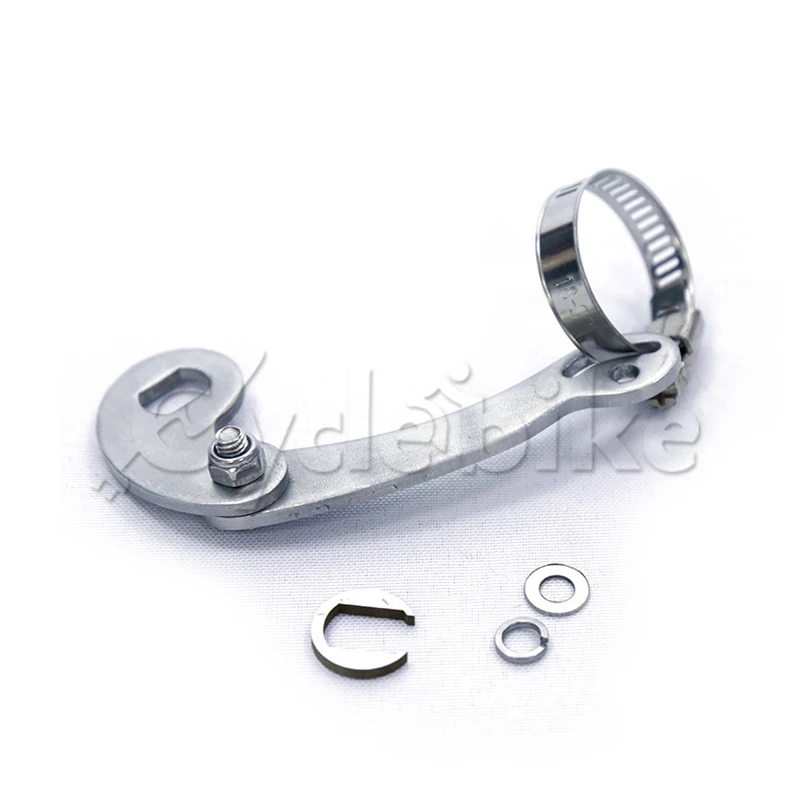

Torque arm
Prevent the motor axle from stripping out

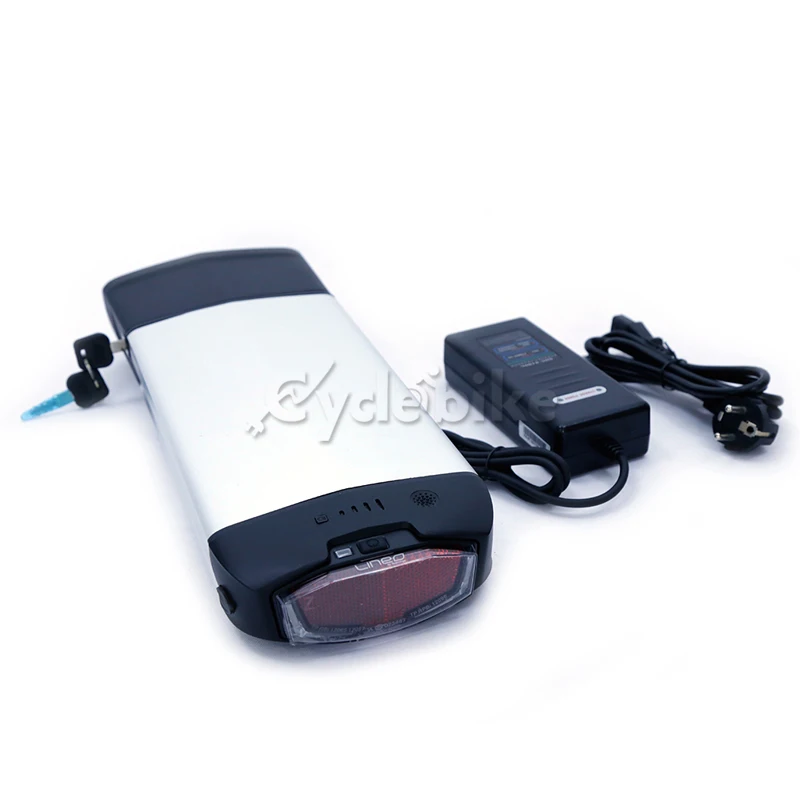

Lithium battery
Different battery for choosing

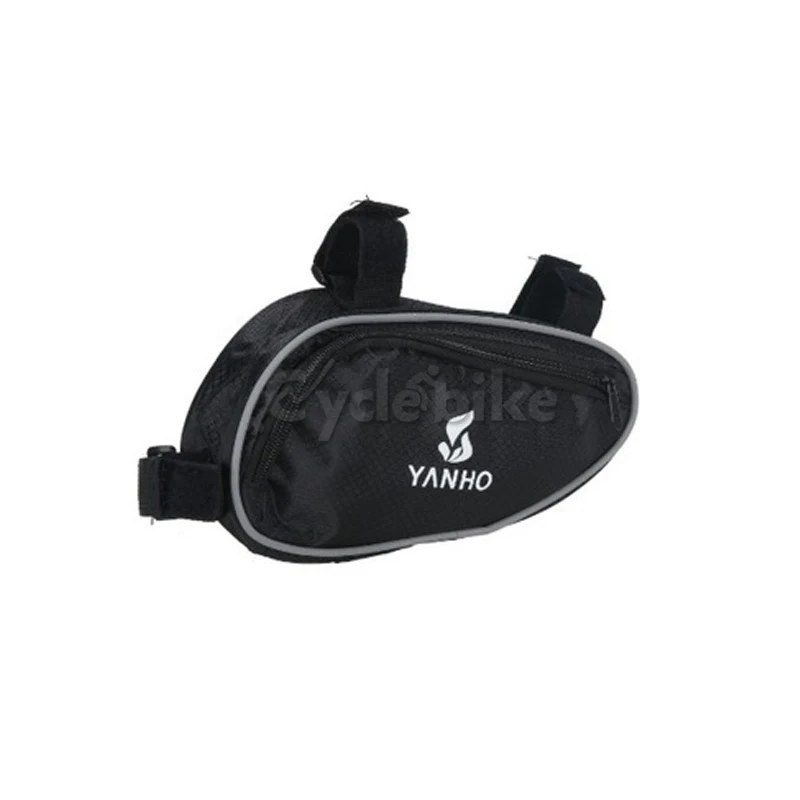

Controller bag
Small controller bag for smart controller
Certifications

why you choose Ncyclebike,we have 5 advantage.

1.Supply to USA,Europe,and Austrilia
2.Professional Perfomance electric bike parts supplier

3.Supply some parts for free. Delivery fast and on time

4. Customized rigid package for long transport. Great package can be delivered to your customer directly
5. Excellent after-sales service. To think what customers want,all customers centered.


UPDATED CERTIFICATION OF MOTOR AND BATTERY:

http://www.iset-italia.eu/RICERCA/class/

Company Name: Changzhou Ncyclebike Co., Ltd

Certificate No: IT091550NC160622

Certificate No: IT081550NC160622

Detailed Images

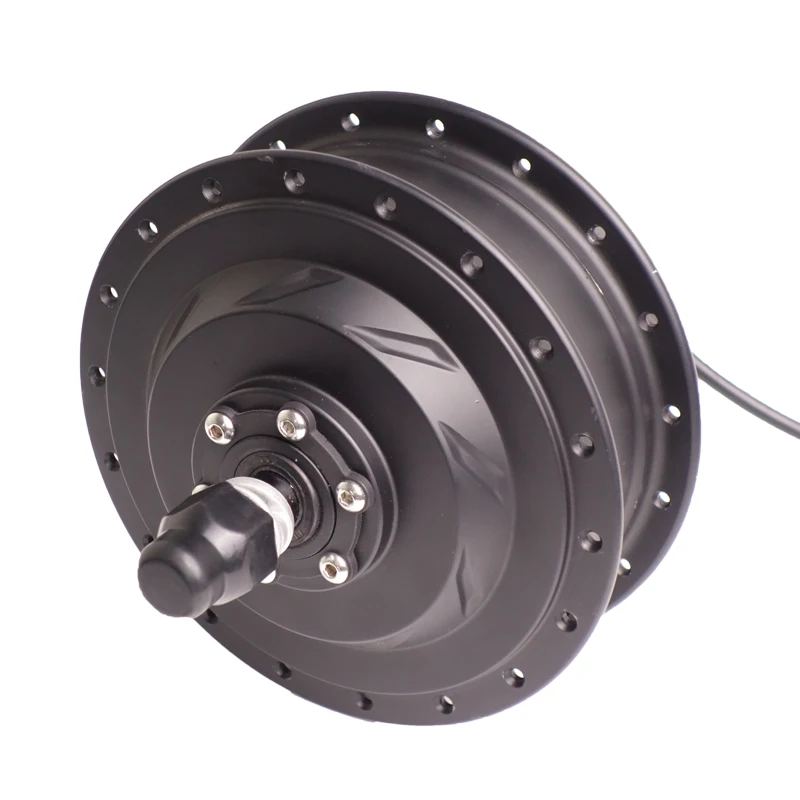

Design
Brushless geared
Power
500w-1000w
Speed
30-40km/h
Torque
35N.m
Weight
3.5kg
Efficiency
>85
placement
Front or Rear
Wheel size
16-29inch
Drop out width
100mm/135mm

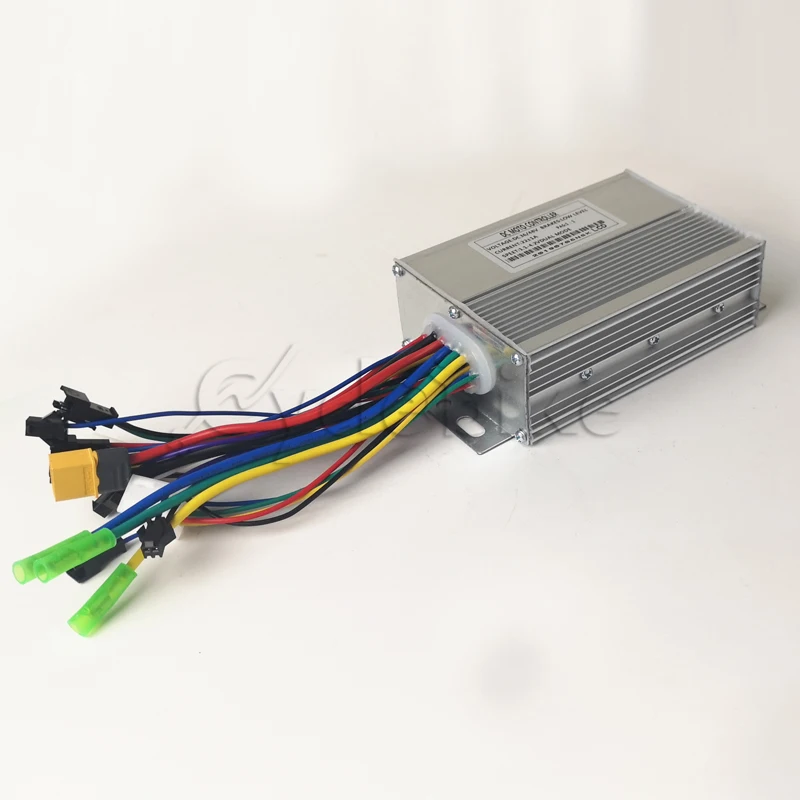

1) Spec.: 36v/48v-22Amp.
2) Size: L141mm*W82mm*H41mm
3) Functions: Low Brake, Display, Throttle, Curise, Temperature sensor, lock, 30KPH limited, Pedal Assist Sesor. With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on. 4) Optional Function: Front Light With Horn
Model
NCBPM
Axle
10mm* 12mm
Magnet Height
18mm
Design
Brushless geared
Windings
5*12
Waterproof grade
IP54
RPM/min
470
Cable size
1.5mm2
Hall sensor
Yes
N.W
4kgs

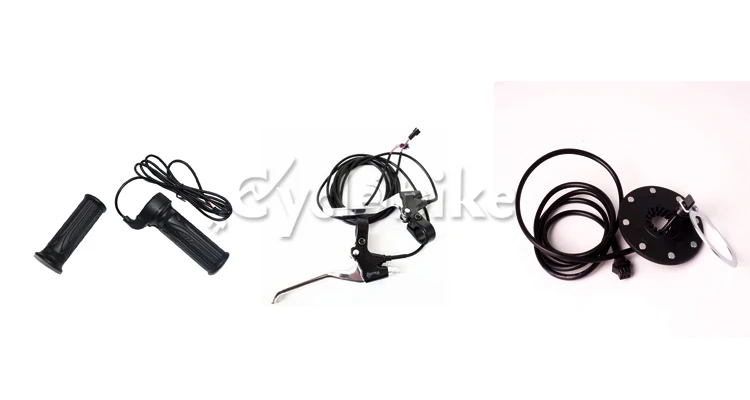

        Twist throttle
         Wuxing brand brake levers
 8 magnet intelligent pedal sensor

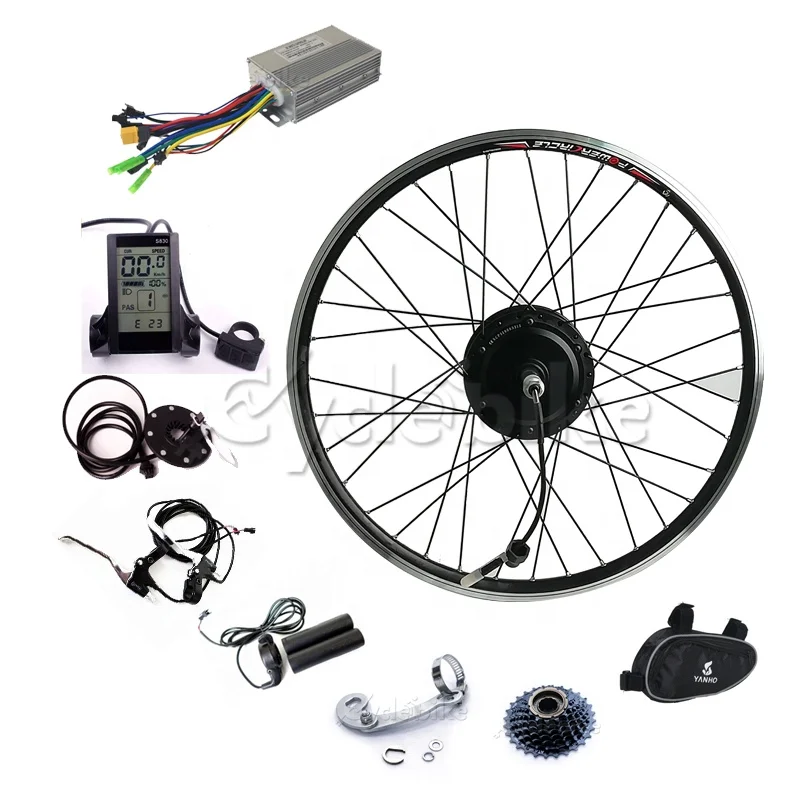

The packing list of 36v/48v 500w geared electric bike kit :

1× 500w brushless geared hub motor(front or rear)
1× 16-29 inch Double wall Aluminum rim with 12G spokes assembled
1× 36v/48v 22A smart controller
1× Thumb throttle/twist throttle for choosing
1× Pair Electric brake levers
1× 1:1 8 magnet intelligent pedal assistant
1× DIfferent display for option

installation manual



Recommend Products
Other relation product:

                  Controller bag

                Torque arm

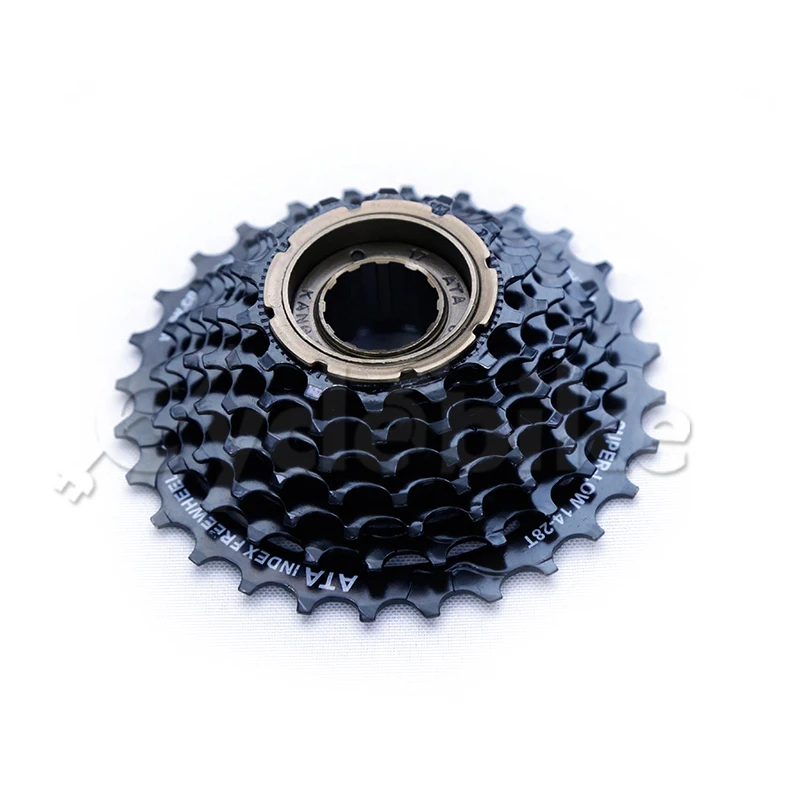

              7 speed free wheel

Matching battery:
JL rear rack battery

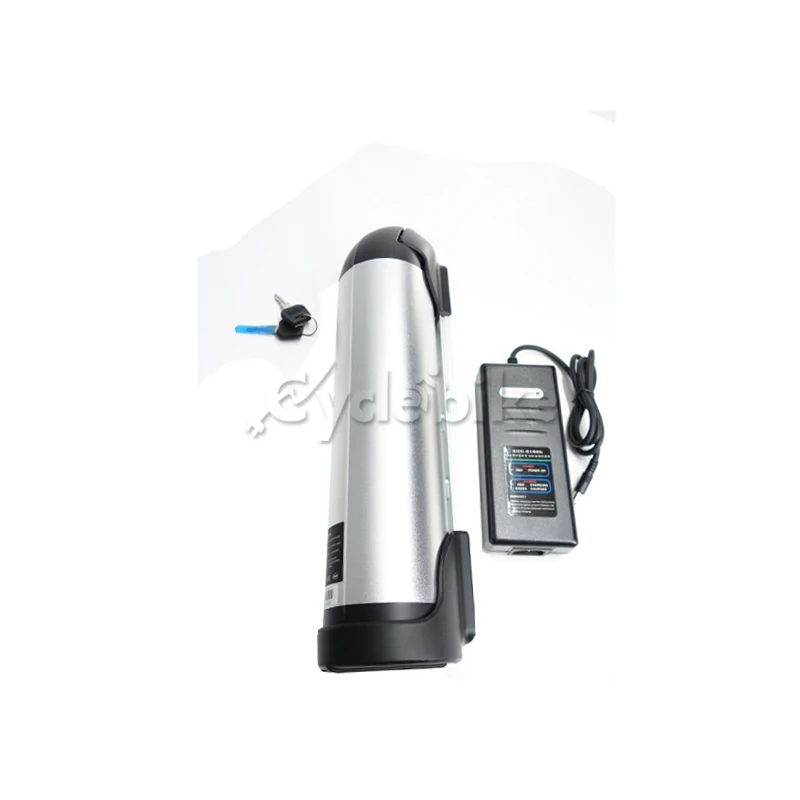

water bottle down tube battery

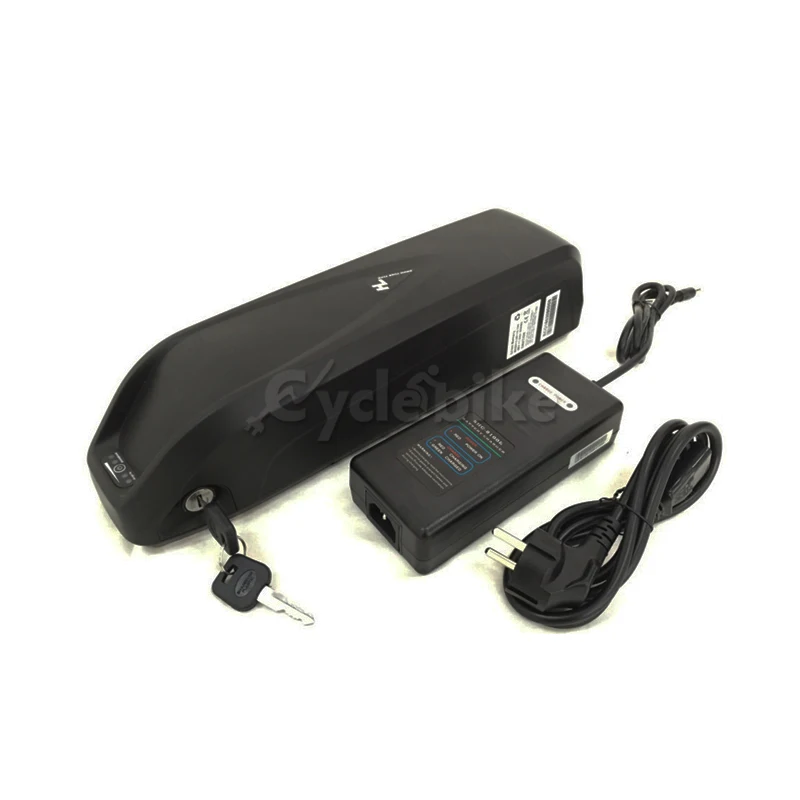

HL down tube battery
