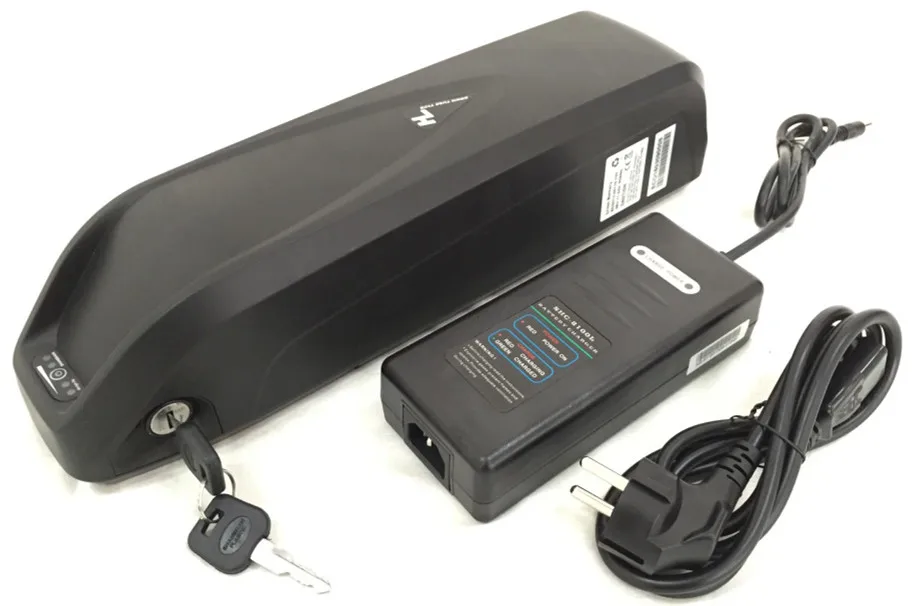

36v10.4ah downtube battery case Lithium Electric Bicycle E-bike Charger

FOB Reference Price:Get Latest Price
$119.00 - $289.00 / Unit | 10 Unit/Units 36V10Ah 500W HaiLong Li-ion Battery E-Bike Lithium Battery (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Lithium Battery
Voltage:
36v
Capacity:
10 - 20Ah
Rated Capicaty:
36v10.4ah downtube battery case Lithium Electric Bicycle
Nominal Voltage:
36V
Pack Dimension:
L361*H90*W92mm
Internal Impedance:
≤100mΩ
Max Charge Voltage:
42V
Max Charge Current:
3A
Min Discharge Voltage:
29V
Charge Temperature:
0-45℃
Certificates:
CE
Discharge Temperature:
-20-55℃
Supply Ability
Supply Ability:
20000 Unit/Units per Month 36v10.4ah downtube battery case Lithium Electric Bicycle E-bike
Packaging & Delivery
Packaging Details
36v10.4ah downtube battery case Lithium Electric Bicycle E-bike Charger
1. Carton box with bubble bag: Package size : 50cm*20cm*20cm Weight : 5kg
2. For big order, we can also put four batteries in one box, or using pallets to pack them, which can protect the products from damage.
Port
Shanghai or Ningbo
Lead Time :
If we have stock, it can be shipped in 3-5 working days.

36v10.4ah downtube battery case Lithium Electric Bicycle E-bike  Charger



1. specification for 36v10ah Black Bottle Lithium Electric Bicycle  E-bike Battery Charger

Battery MaterialLithium ion 18650Lithium ion 18650Lithium ion 18650Lithium ion 18650
2000mah cell2600mah cell2200mah cell2400mah
FST 2200mahSamsung 26HFST 2200mahFST 2400mah
Nominal Voltage36V36V36V36V
Rated Capicaty10Ah10.4Ah11Ah12Ah
Size L342*H32*W85mm L342*H32*W85mm L342*H32*W85mm L342*H32*W85mm
Internal Impedance≤100mΩ≤100mΩ≤100mΩ≤100mΩ
Max Charge Voltage42V42V42V42V
Max Charge Current3A3A3A3A
Min Discharge Voltage29V29V29V29V
Rated Discharge Current10A10A20A20A
Max Discharge Current20A20A40A40A
Charging ModeCC/CVCC/CVCC/CVCC/CV
Pack WeightAbout 3.5kgAbout 3.5kgAbout 3.5kgAbout 3.5kg
Over Current Protection 25A±3A25A±3A45A±3A45A±3A
Cycle Life800cycles800cycles1000cycles1000cycles
Charge Temperature0-45℃0-45℃0-45℃0-45℃
Discharge Temperature-20-55℃-20-55℃-20-55℃-20-55℃
CertificatesCECECECE
Motor Max350w500w500W750W

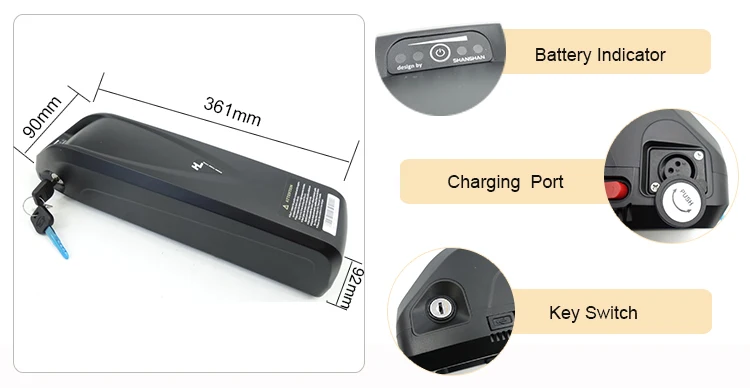

2. Feature for 36v10.4ah downtube battery case Lithium Electric Bicycle E-bike  Charger

(1) New Hailong Case;
(2) Waterproof and Solid plastic Case;
(3) Lighted battery LED power Indicator;
(4) Convenient Charge Port;
(5) Lock with Keys securely locks the mount on bike frame.



3. Production for 36v10.4ah downtube battery case Lithium Electric Bicycle E-bike  Chargerr

 thumb_IMG_0247_1024.jpgHL lithium battery .jpg

4. Application for36v10.4ah downtube battery case Lithium Electric Bicycle E-bike  Charger

hailong battery .pngQQ20170915162822.jpgW8QM3WK8E]O]546GVNU9T8.png

5. Our advantage for 36v10.4ah downtube battery case Lithium Electric Bicycle E-bike  Charger



(1) Environmental friendly;

(2) High density of energy;

(3) Light weight;
(4) Low self-discharge;
(5) Low internal resistance;
(6) Long cycle life, chargeable up to 1000 times;

(7) No memory effect;

(8) Doesn’t contain Mercury, No fire, No explosion, No leakage;

(9) BMS for battery over charge, over discharge, short circuit protection.

 6. drawing for 36v10.4ah downtube battery case Lithium Electric Bicycle E-bike  Charger

hailong 1 battery .jpg





.jpg
