CC/CV Charging Mode 24V 10ah built in lithium battery controller

FOB Reference Price:Get Latest Price
$120.00 - $285.00 / Unit | 10 Unit/Units (Min. Order)
Battery Size:
Nominal Capacity:
Nominal Voltage:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Units) 1 - 5 6 - 10 >10
Est. Time(days) 10 15 Negotiable
Report Suspicious Activity
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Model Number:
Built-in Controller
Rated Capicaty:
Nominal Voltage:
Pack Dimension:
Internal Impedance:
Max Charge Voltage:
Min Discharge Voltage:
Charge Temperature:
Discharge Temperature:
Charging Mode:
Supply Ability
Supply Ability:
20000 Unit/Units per Month
Packaging & Delivery
Packaging Details
1. Carton box with bubble bag.
2. For big order, we can also put four batteries in one box, or using pallets to pack them, which can protect the products from damage.
Shanghai or Ningbo
Lead Time :
Quantity(Units) 1 - 5 6 - 10 >10
Est. Time(days) 10 15 To be negotiated


CC/CV Charging Mode 24V 10ah built in lithium battery controller





Details Show of Lithium Battery:









24V HL1 Lithium battery
Battery MaterialLithium ion 18650Lithium ion 18650Lithium ion 18650Lithium ion 2900mah
2000mah cell2200mah cell2600mah  18650PF
Nominal Voltage24V24V24V24V
Rated Capicaty10Ah11Ah13Ah14.5Ah
Pack DimensionL361*H90*W92mmL361*H90*W92mmL361*H90*W92mmL361*H90*W92mm
Internal Impedance≤100mΩ≤100mΩ≤100mΩ≤100mΩ
Max Charge Voltage29.4V29.4V29.4V29.4V
Max Charge Current3A3A3A4A
Min Discharge Voltage20V20V20V20V
Rated Discharge Current10A10A13A20A
Max Discharge Current20A20A25A30A
Pack WeightAbout 2 .1kgAbout 2 .1kgAbout 2 .3kgAbout 2 .3kg
Over Current Protection 25A±3A25A±3A30A±3A35A±3A
Cycle Life800cycles800cycles1000cycles1000cycles
Charge Temperature0-45°C0-45°C0-45°C0-45°C
Discharge Temperature-20-55°C-20-55°C-20-55°C-20-55°C
Motor Max250W250W350W450W

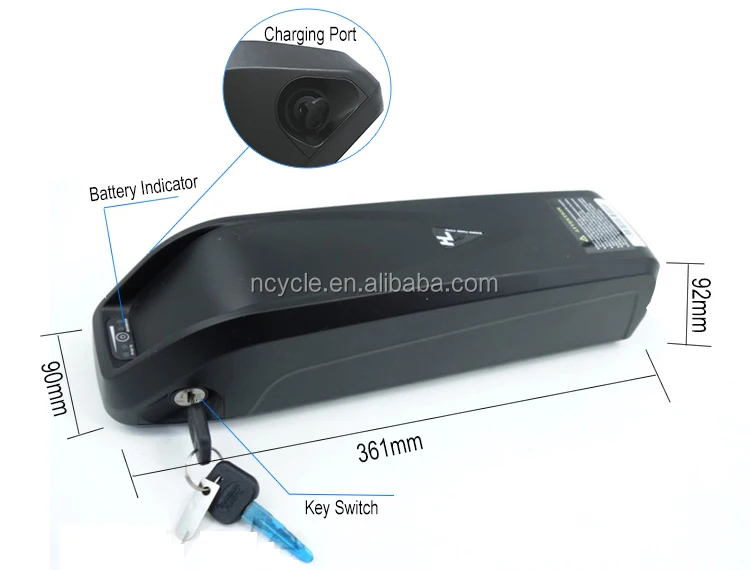

1. New Hailong Case;
2. Waterproof and Solid plastic Case;
3. Lighted battery LED power Indicator;
4. Convenient Charge Port;
5. Lock with Keys securely locks the mount on bike frame.




1) Environmental friendly;

2) High density of energy;

3) Light weight;
4) Low self-discharge;
5) Low internal resistance;
6) Long cycle life, chargeable up to 1000 times;

7) No memory effect;

8) Doesn’t contain Mercury, No fire, No explosion, No leakage;

9) BMS for battery over charge, over discharge, short circuit protection;
100% quality test before shipping.




1.We  produce  sample for confirmation and as the order confirmed,will return back the sample fee   for customers.

2.We are capable of providing specific specification products you want.

3.We are ready to assist with any questions or problems.

4.We treat clients as friend. Quick response in 12-24 hours. Two years warranty for motor, one half  year warranty for battery.
5.We have strict quality control system .Good reputation in the market. Each product is test  100% good before shipping.




1. Prohibit have the positive pole and the negative pole of the Li-ion Battery input/output in the short-circuit.

2. Prohibit put the Li-ion battery in fire, it must be away from the fire source and the heat source.

3. Prohibit discharge by charging port, on the contrary, it is not allowed too.

4. Charge temperature in the work environment: 0°C- 45°C

    Discharge temperature in the work environment:-20°C- 60°C

5. If the charging is not stopped in the provisions time, please stop charging.


1. When the battery is to be stored a long time, please charge your battery for a half saturated status, and must be charge it each two months.

2. The battery must be stored on a clean, dry, and ventilated place. Avoid contact with the corrosive materials, and must be away from the fire source and heat source.

3. The storage temperature conditions for battery:

1 year: -20°C- 25°C

3 months: -20°C- 45°C

1 month: -20°C- 65°C

4. The battery must be packed into boxes for transport. In transit, the boxes cannot be vibrated, impacted, and pressed, and avoid the sun and rain. You can use some vehicle for transport, such as cars, trains, ships, aircraft, etc.




Q1Can I get some samples?

A: Yes, sample order is available for quality check and market test.


Q2: What’s the lead time?

A: It usually takes about 15 working days for production depending on your order quantity.


Q3. What is the Minimum Order Quantity(MOQ)?

A: Different model has different MOQ, so please contact with us before you send order.


Q4: Do you accept OEM order?

A: Yes, we can. Welcome to do OEM. Please email us to talk about the details.


Q5: What's your payment terms?

A: We usually accept Paypal, T/T and Western Union as the main payment terms,and other payment can also be negotiated.



1. We test each items before we send out, we guarantee the items with 12 months against default in quality.
2. But we are not responsible for buyers' mistake or wrong handling, batteries must be maintained in proper way. If item is defective and not working on arrival, please report the item to us within 7 days after you receive it.
3. Please contact us to request a return authorization. Please include your name, order number, and reason for return when you contact us. All items returned must contain all original packaging materials. 4. Please carefully repack the item. Items returned will be tested and if found defective, the buyer will be shipped a new replacement unit immediately. In the event that a suitable replacement is not available a refund will be issued.
